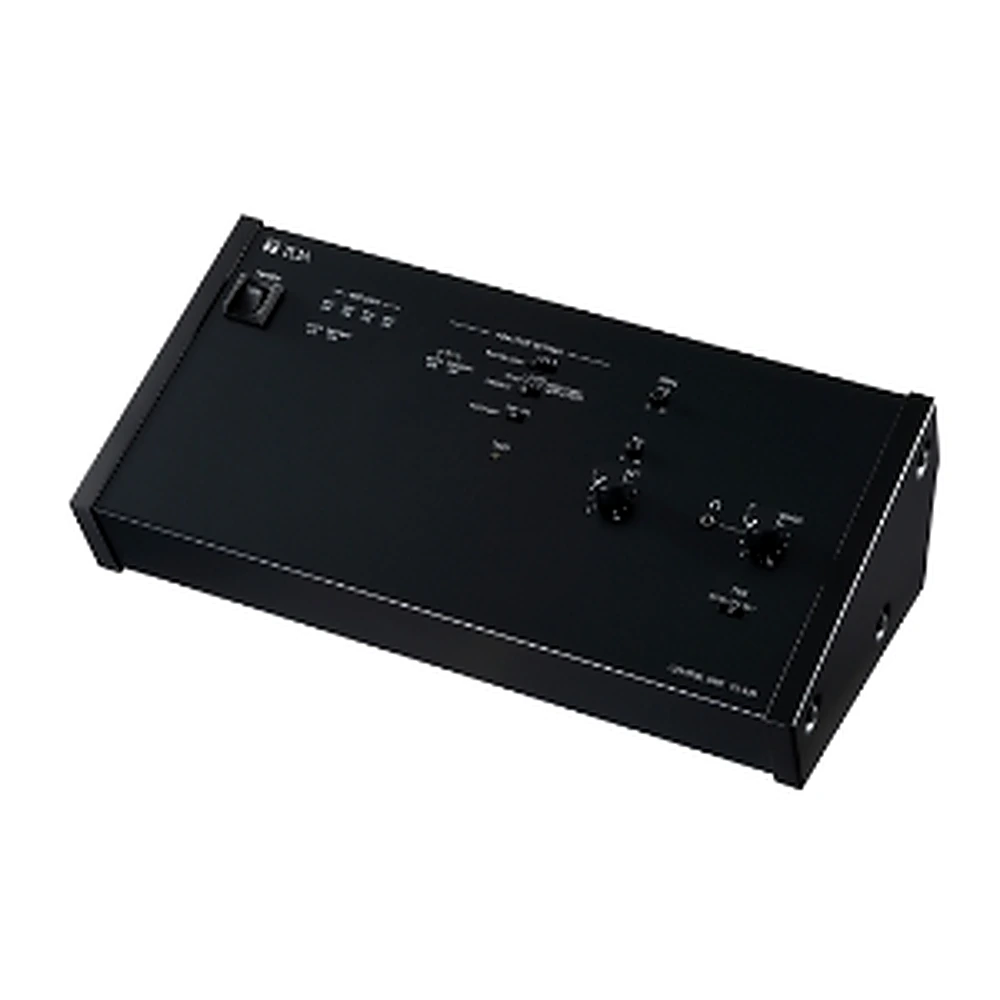

Center unit without Recording function TOA TS-820
คุณลักษณะของ Center unit without Recording function TOA TS-820
- การประชุมที่ไร้เสียงสัญญานรบกวนด้วยการรับ-ส่งสัญญานแบบอินฟาเรด
- ออกแบบมาให้มีความยืดหยุ่นและเคลื่อนย้ายได้ง่าย
- เหมาะสำหรับการติดตั้งแบบชั่วคราวหรือถาวร
- มีระบบป้องกัน Feedback Supperssion ภายในตัว หรือเชื่อมต่อการภายนอก
- สามารถบันทึกเสียงภายในตัวเครื่อง หรือ ผ่าน USB Flash Drive ในรุ่น TS-820RC/TS-920RC
- มีฟังก์ชั่นการลงคะแนนแบบสามทางเลือก ในรุ่น TS-920RC
- รองรับระบบแปลภาษา 2 ช่องสัญญาน ในรุ่น TS-920RC
- สามารถเชื่อมต่อได้สูงสุด TS-820/820RC: 64 ยูนิต, TS-920RC: 192 ยูนิต
- รองรับการใช้งานร่วมกับกล้อง PTZ (Onvif)
- Brochure : TS-820_920_Series
Spec Of Center unit without Recording function TOA TS-820
Power Source | 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter) TOA TS-820 |
---|---|
Power Consumption | 72 W |
Current Consumption | Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter) |
Carrier Frequency | Reception: Audio Channel 1: 7.35 MHz Audio Channel 2: 8.10 MHz Audio Channel 3: 8.55 MHz Audio Channel 4: 9.15 MHz Control Channel: 6.45 MHz Transmission: Audio Channel: 1.95 MHz |
Input | MIC: -60 dB*, 600 Ω, unbalanced, Ø 6.3mm phone jack (2P) AUX: -20 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P) |
Output | LINE: -10 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P) REC: -10 dB*, 10 kΩ, unbalanced, RCA pin jack HEADPHONE: Ø 3.5mm mini jack (3P: monaural) |
Number of Connectable Chairman/Delegate Units | 64 units |
Number of Connectable Infrared Transmitter/Receiver Units | Up to 4 units (with the use of distributor, up to 16 units connectable when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination) |
Infrared Transmitter/Receiver I/O Terminal | BNC jacks TOA TS-820 |
External Control Connection Terminal | D-sub connector (9 P, male) / USB-B selectable |
LED Indicator | Audio signal receiving indicators 1 – 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit’s battery nears complete discharge), Short-circuit indicator |
Function Switch | No. of open microphones setting switch: 1/2/3/4 Mic-off setting switch: TIME OUT ON/OFF Speech priority selector switch: FIRST (First-in-first-out priority), LATEST (Last-in-first-out priority), FIRST: FIXED NEXT: LATEST (Priority fixed for the first unit, and last-in-first-out for all other subsequent units) FBS switch: AUTO/OFF/EXT |
Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
Operating Humidity | 90 %RH or less (no condensation) |
Finish | Panel: Surface-treated steel plate, black, 30% gloss, paint |
Weight | 2.7 kg (5.95 lb) |
Accessory | AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)…1 |
Option | Rack mounting bracket: MB-TS920 |
