TOA TS-921
฿21,600.00

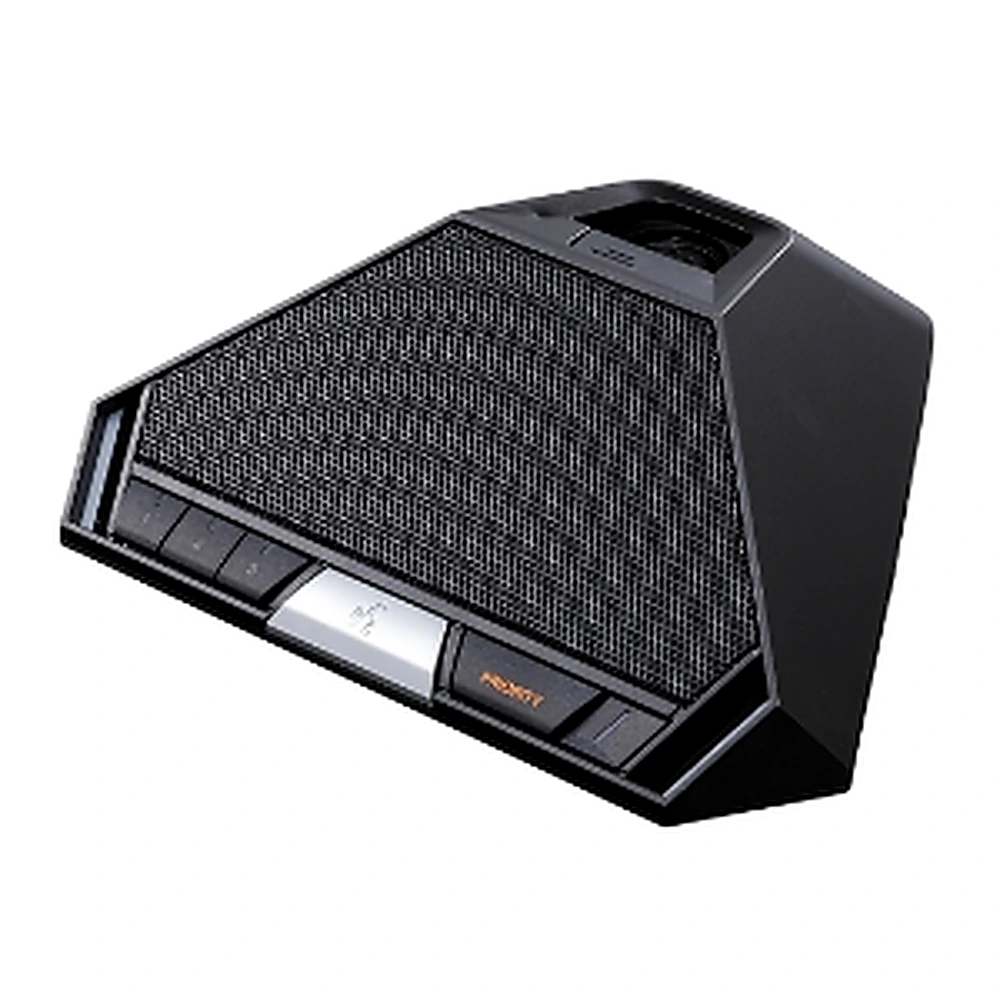

- The TS-921 is a Chairman unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. The Chairman unit features a priority speech key which allows it to take precedence over the TS-922 Delegate units when speaking. It can be operated on either the AD-0910 AC adapter or the BP-920, BP-900A lithium-ion battery. It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-921 as optional products: the TS-923, TS-903 standard type and the TS-924, TS-904 long type.
หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก
Chairman Unit TOA TS-921
คุณลักษณะของ Chairman Unit TOA TS-921
- รับ-ส่งข้อมูลผ่านอินฟาเรดไร้สาย
- มีสวิตซ์ลงคะแนน 3 ปุ่ม
- ชุดประธานสามารถตัดเสียงผู้ร่วมประชุมได้
- ใช้ร่วมกับไมโครโฟน TS -923 หรือ TS-924
- Brochure : Cattalog infrared wireless conference TS-820-TS920 series
Spec Of Chairman Unit TOA TS-921
| Power Source | Supplied from optional lithium-ion battery or AC adapter TOA TS-921 |
|---|---|
| Current Consumption | Max. 390 mA |
| Infrared Emitter / Detector | |
| Wavelength | 870 nm (AM: Brightness modulation) |
| Modulation Method | Frequency modulation |
| Carrier Frequency | Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Reception: Base language channel: 1.95 MHz Translation language channel: 2.25 MHz |
| Covering Range | 7 m (22.97 ft) radius |
| Input | Microphone terminal: XLR-4-31 type |
| Output | Monitor speaker: 8 Ω, 0.2 W Headphone: φ3.5 mm mini Jack (3P:monaural) × 2 |
| LED Indicator | Speech indicator, Voting status indicators 1 -3, Power indicator |
| Function | Monitor volume control, Headphone volume control, Priority speech function, Voting function, Monitor selector switch (MAIN/SUB) |
| Battery Life | Approx. 10 hours (when the fully-charged BP-920 or BP-900A is used with “During speech” to “Standby” ratio of 1:2) |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Case: PC resin, black Speaker Net: Steel plate, Black, matte finish, paint |
| Dimensions | 205.7 (W) × 70.3 (H) × 164.2 (D) mm (8.1″ × 2.77″ × 6.46″) |
| Weight | 525 g (1.16 lb) |
| Option | Microphone: TS-923, TS-903, TS-924, TS-904 (Select either one.) Lithium-ion Battery: BP-920, BP-900A AC adapter: AD-0910 |
สอบถามเพิ่มเติม
| น้ำหนัก | 0.525 กก. |
|---|---|
| ขนาด | 16.42 × 20.57 × 7.03 เซนติเมตร |
