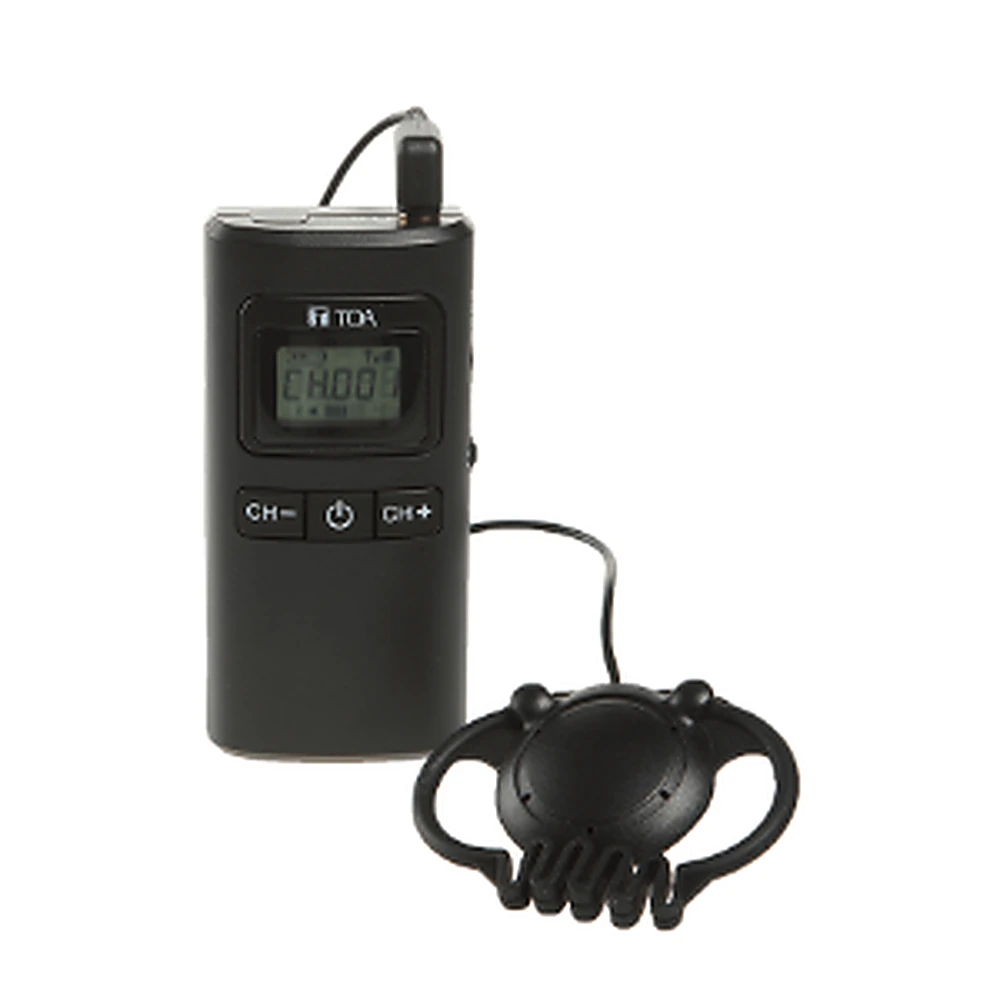

TOA WG-D100R-AS

฿6,400.00

WG-D100R one-way digital wireless guide provides crystal clear sound without interruption, ensuring clear audio transmission at all times.
Uses a single AA battery with rechargeable options. Recording of content is possible by connecting the recorder to the AUX output of the receiver.
Brochure : WG-D100 system wireless tour guide

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Digital Wireless Guide Receiver TOA WG-D100R-AS

คุณลักษณะของ Digital Wireless Guide Receiver TOA WG-D100R-AS

Frequency	510 – 530 MHz, 748.3 – 757.7 MHz, 803.3 – 805.7 MHz
Modulation	GFSK
Audio Sampling	8 kHz 16 bit
Latency	22 ms
Frequency Response	65 Hz – 3.8 kHz
Dynamic Range	> 80 dB
Signal to Noise	> 70 dB
THD at 1kHz	< 1.5 %
Service Coverage	Indoor: 100 m / Outdoor: > 150 m
Operating Temperature	-10 °C – 50 °C
Receiver Sensitivity	– 88 dBm
3.5mm Phone Jack	Earphone output x 1 (32Ω) / AUX out x 1 (0Ω)
Front + & – Buttons	Channel Selector
Power Button	Power On / Off
Side Momentary 3way Tact Switch	+ : Volume Up
	Center Push: Corresponding Frequency
	– : Volume Down
Battery Life	Approx. 14 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery)
Battery	Ni-MH type “AA” 1.2V x 1 / Alkaline “AA” 1.5V x 1
Charging Source	DC 5V Micro USB
Charging Time	Depends on battery type and capacity
Charging Current	255 ± 10 mA
LCD Display	Channel, Battery Indicator, Volume, Signal Strength
Antenna	Headphone
Regulatory Compliance	CE FCC
Color	Black Frame
Dimensions	40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included
Weight	38.6 g (battery not included)
Accessory	Earphone x 1, Belt Clip x 1, Lanyard (Red) x 1, Universal USB Adapter x 1, USB Cable x 1

สอบถามเพิ่มเติม

น้ำหนัก	0.0386 กก.
ขนาด	2.46 × 4 × 8.35 เซนติเมตร
