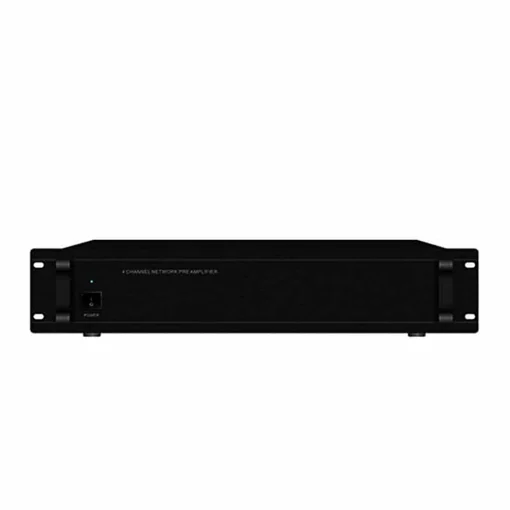

เครื่องขยายเสียง CMX IP-604NA
Feature:
- The four channel IP network pre amplifier.
- The IP network pre-amplifier with four separate decoders.
- Four IP program simultaneously broadcast without interference.
- It is high capacity but cost-effective multiple room network sound system.
- The system could be set up over existing network, non dedicated network is needed.
- System capacity of 6000 IP decoder online simultaneously.
- Eight zone contact outputs for zone status monitoring.
- Support LAN/WAN and Internet network.
- Network data delay of less than 30 milliseconds.
- Remote volume control and program edit from server.
- Remote paging system by work with IP-600TM IP remote microphone.
Specification
Model |
IP-604NA |
Description |
Four Channel IP Network Pre-Amplifier |
Power Supply |
AC230V, 50-60Hz |
Power Consumption |
30W |
Network Protocol |
TCP, UDP, ARP, ICMP, IGMP |
Network Speed |
10/100Mbps |
Audio Format |
Mp2, Mp3, PCM, ADPCM |
Audio Sampling |
8KHz-44.1KHz, 16 bits, 8K-320Kbps |
S/N Ratio |
≥90dB |
Frequency Response |
20Hz-20KHz |
Data Delay |
30 milliseconds |
Connector |
four aux inputs, four aux outputs, , four RJ45 inputs, one 100V power input |
Working Temperature |
-5℃ to +40℃ |
Humidity |
10% ~ 90% |
Dimensions |
484×365×88mm |
Weight |
6.8kg |
