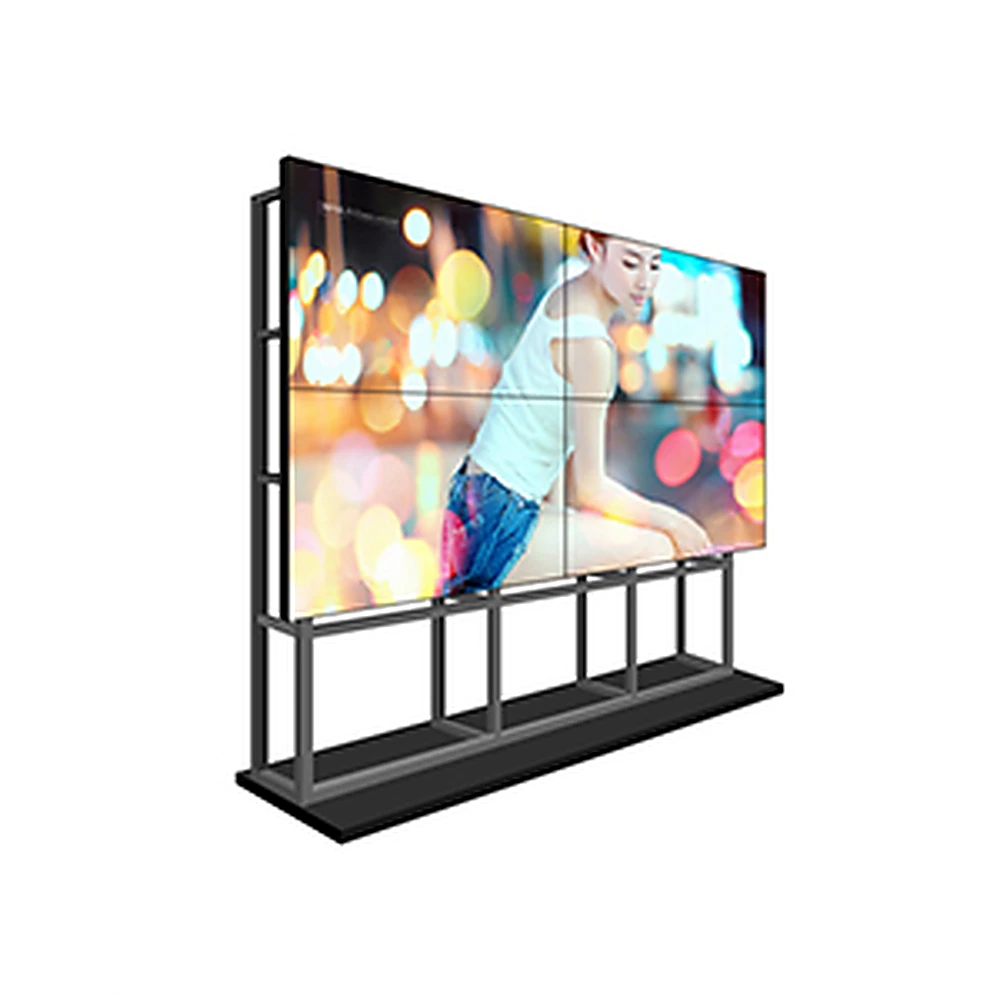

Video wall 46 นิ้ว 2×2 ขอบ 3.5 มิลลิเมตร
คุณลักษณะ Video wall 46 นิ้ว 2×2 ขอบ 3.5 มิลลิเมตร
Model | 46” LCD Panel | |
Bezel | 3.5mm | |
LCD Panel | Max Resolution Support | 1920×1080(H×V) |
Pixel Pitch | 0.53025(H)×0.53025 (V) | |
Brightness (nits) | 500 (cd/ m ) | |
Contrast | 4000:1 | |
Response Time | 8ms | |
Color | 16.7M | |
Visual Angle (H/V) | 178°(H) / 178°(V) | |
Image | Contrast | 16 : 9 |
Picture quality compensation | LTI、CTI | |
Motion compensation | AUTO MOVE | |
Filter | 3D comb filtering,digital noise reduction | |
Video format | PAL、NTSC | |
Video Wall Controller
(Built-in each Screen) |
Computer centralized control interface | RS232 |
Structure | Border dimension | 3.5mm |
Net weight | 25kg | |
Shell material | Metal shell, anti-static,anti-magnetic,anti-strong electric field interference | |
Installation way | Wall mount,floor standing mount,hanging mount |
Configuration
Option 1 | Full HD 2K | ||
Signal source | Composite Video Input/(AV) | CVBS(BNC) ×1 | |
Digital signal input | HDMI×1; 1920×1080@60Hz backward compatible | ||
Computer signal input | VGA(DB-15) ×1;1920×1080@60Hz backward compatible | ||
Digital signal input | DVI(DVI-I)×1;1080P(1920×1080) backward compatible | ||
Composite Video Input/(AV) | CVBS(BNC)x1 | ||
RS232 | 3 | ||
USB | 1 | ||
Option 2 | DP Looping 4K | ||
Signal source | Display Port(DP) | 3840×2160@30Hz、3840×2160@20Hz、3840×2160@25Hz | |
HDMI | 480p、576p、720p、1080i、1080p、2160p | ||
DVI | 480p、576p、720p、1080i、1080p | ||
Input port
|
Display Port | DP×1 | |
PC-RGB | 15 D-SUB×1 | ||
HDMI | HDMI×1 | ||
DVI | DVI×1 | ||
RS232 | 1 | ||
Output | RS232 | 1 | |
Display Port | DP×1 |
LCD Video Wall 46 นิ้ว 2×2 3.5 มิลลิเมตร ทำงานอย่างไร
จอ Video wall LCD Bezel ขนาด 46 นิ้ว 3.5 มม. เป็นการนำ จอขนาดเส้นทะแยงมุม 46 นิ้ว มาเรียงต่อกัน และ ให้แต่ล่ะ จอทำการแสดงภาพ ที่แตกต่างกัน โดย ใช้โปรแกรมควมคุมการแสดงภาพ หรือ จากเครื่องส่งสัญญาณภาพแบบ martix ซึ่ง จอแบบนี้แตกต่างจากจอทีวีธรรมดา ตรงที่ สามารถแสดงภาพได้นานกว่า และมีความคงทนกว่า เครื่องรับโทรทัศน์แบบธรรมดาสามารถทำงานได้สองสามชั่วโมงต่อวัน ในขณะที่แผงเฉพาะเหล่านี้คาดว่าจะทำงานได้หลายชั่วโมง หรือ 24/7 หรือแม้แต่วันอย่างต่อเนื่อง แต่ก็จะมีข้อเสียอยู่บ้างตรงที่ มีขอบจอแสดงผลซึ่งมีความหนา 3.5 มิลลิเมตร อาจจะทำให้ภาพที่ได้มีรอยต่อของจอบังทัศนวิศัยการในการรับชม
