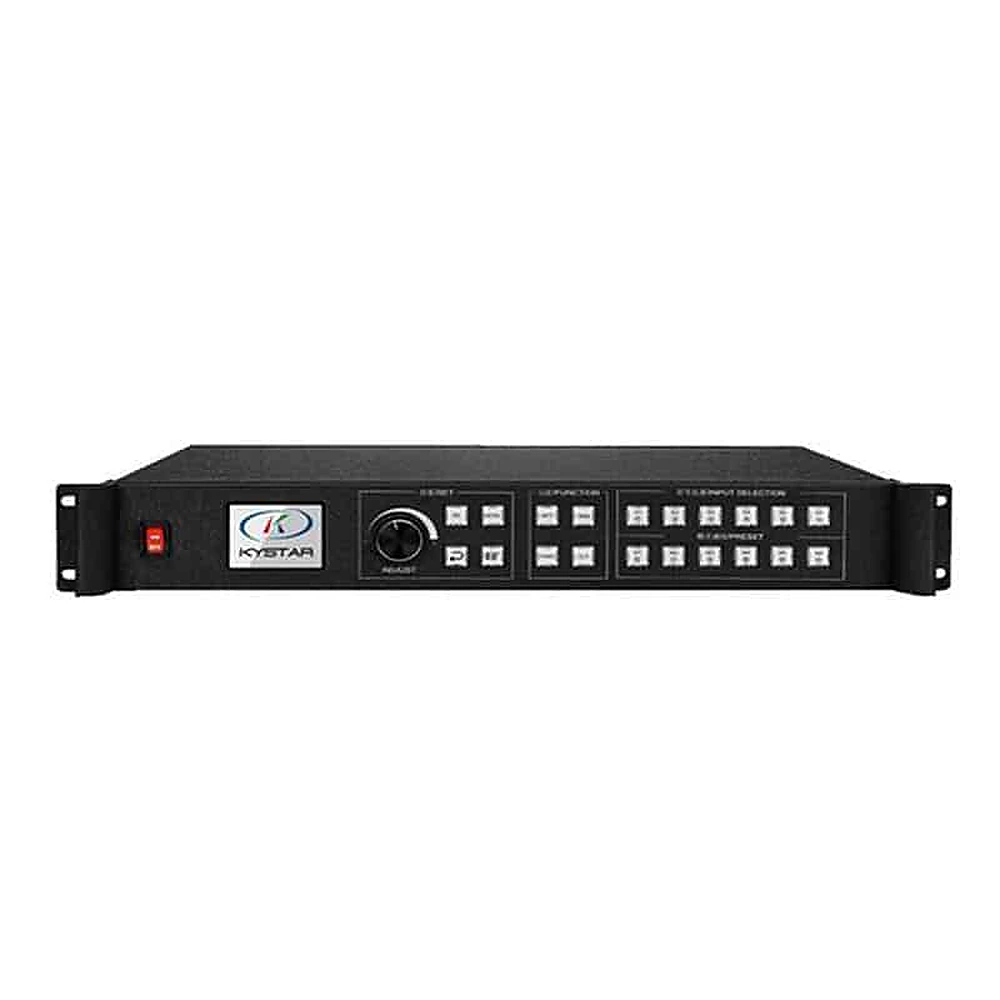

VDO Processor KYSTAR U4
SPEC VDO Processor KYSTAR U4
- Output pixels up to 15360 horizontally or 7680 vertically
- Display Four windows of images on a single screen simultaneously or control four different LED screens
- Support HDMI , DVI , VGA , SDI , CVBS , IP inputs
- six windows preview and output monitoring
- Ethernet monitoring and control in real time
- Editable text and image overlay
- Window or mode transition effects including dissolves, wipes, and cuts
- Brightness control of each input
- Transparency adjusting and edge feathering
- Hot backup of input signals
Multi-format Signals Processing and 4k Processing KYSTAR U4
- Multi-format Signals Processing
U4 is compatible with a variety of input signals : DVI×1, HDMI×1, VGA×2, CVBS×2, SDI×1 and expansion slot×1.
- 4k Processing Accommodating
4k signal input terminals including HDMI 1.4 and Dual Link DVI , U4 enables an input resolution up to 4096×2160, conveniently realizing UHD display of large LED screens!
6.3 milion arbitrarily adjusted KYSTAR U4
- Processor is a 4 outputs device that supports horizontal, vertical and cross splicing to reach high resolution as 15360×400 or 960×6144.
U4 also supports user-define output resolution , allowing users to freely change aspect ratio of resolution and refresh rate.
Free Display of four Windows
- Free Display of four Windows
U4 enables the simultaneous display of four windows on a single screen.The size, location and hierarchical relationship of each window can be adjusted independently.
- Multi-screen Combination and Special-shaped Splicing
U4 can not only display 4 windows on a screen, but control 4 LED screens simultaneously as well, each of which can display independently or be combined into a complete image. Besides, pixel pitch of such screens can be different.
Excellent Image Processing Effect KYSTAR U4
- Super Resolution Technology
Super Resolution Zoom-in Technology can effectively eliminate edge aliasing induced from image zoom-in, thus reducing out-of-focus blur accordingly. - CrossInt Splicing Technology
The splicing unit of LED screen is often non-standard, non-uniform or different size ones, which may result in dislocation or out-sync etc. U6 adopts the CPT+FST splicing processing technology specially designed for small pixel LED displays, perfectly solving the said problem.
Local Monitoring And Preview
There’re three modes when using the local monitor & preview output of U4:
1. Monitor the outputs, showing the same image with the Display.
2. Preview the inputs, showing 6 inputs images in the same time.
3. Monitor and preview in the same time.
Ethernet monitoring & control in real time
- Ethernet control
U4 can be compatible with KYSTAR management software via Ethernet or serial communication. Users can configure parameters on U4 through management software, adjust window layout, complete special effects switching, set up scheduled tasks etc.
- Ethernet monitoring and preview
Via Ethernet, users can not only configure the parameters of U4, but achieve monitoring and preview through the KYSTAR management software in real time.
Images And Texts Overlay
- Images And Texts Overlay
U4 is able to generate independent images and texts overlay layer. The user is allowed to overlay pictures or characters on the signal image conveniently with the KYSTAR control software . The overlaid contents can be stored in the equipment.
Hot Backup of Inp ut Signals
- Users can specify the backup signal for signal source . If current signal goes wrong, the system will automatically detect and call the backup signal immediately. And if the signal returns to normal, the system will transfer back to the original signal intelligently. Building parallel system with this function, the reliability of scene can be guaranteed efficiently.
Image Configuration
- Transparency adjusting and edge feathering
In order to integrate the different layers of image well, U4 can change the transparency of each windows or achieve edge feathering effect.
- Independent brightness control
U4 can adjust the brightness of each inputs independently so that the user can improve the quality of the specific image without influence to the others.
