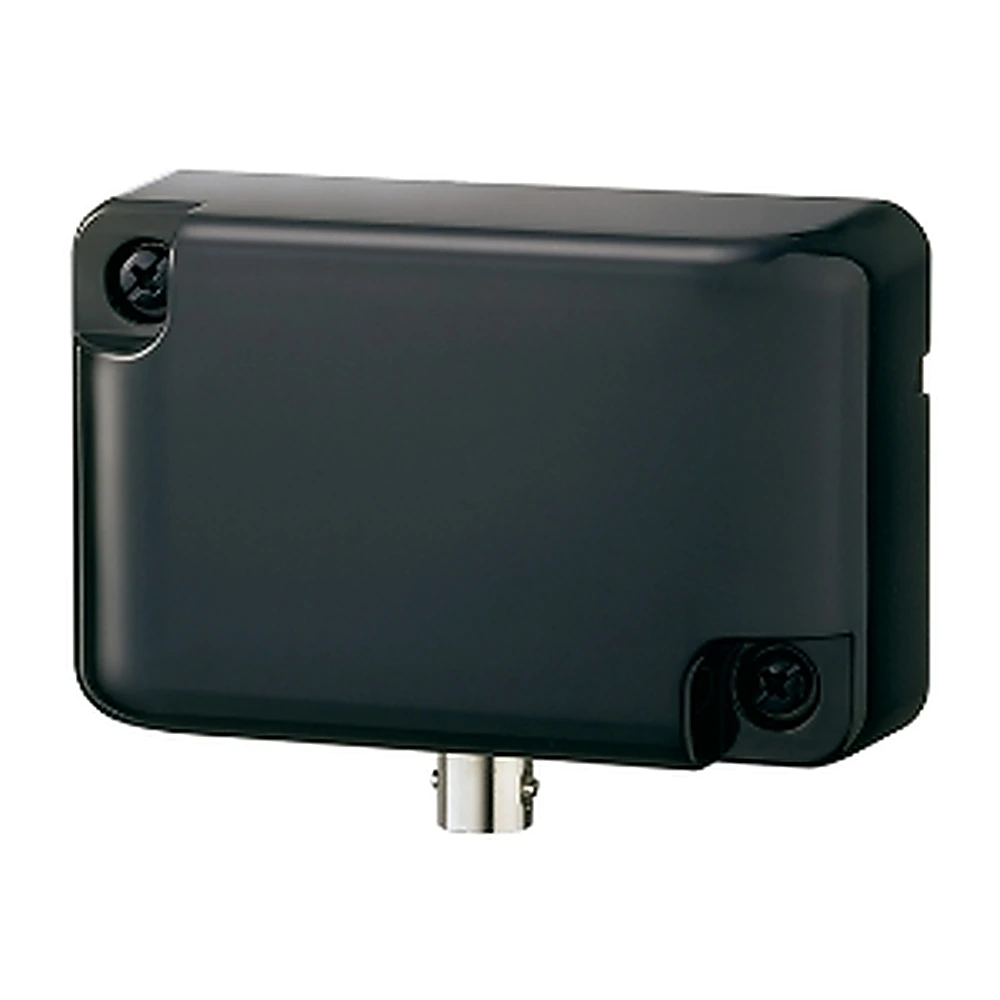

TOA IR-520R

฿4,100.00

The IR-520R infrared wireless receiver is designed for exclusive use with the IR-702T infrared wireless tuner. It can be mounted on a wall or a microphone stand.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Infrared Wireless Receiver (Wall/Microphone Stand) TOA IR-520R

TOA IR-520R

คุณลักษณะของ Infrared Wireless Receiver (Wall/Microphone Stand) TOA IR-520R

Power Source	24 V DC (supplied from the IR-702T)
Current Consumption	Max. 30 mA

Infrared Detector

Wavelength	870 nm
Carrier Frequency	Channel A: 3.100 MHz Channel B: 3.350 MHz
Communication Area	Approx. 15 m (50 ft) in a space without any obstacles

Connection Terminal	75 Ω, BNC jack
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	30 % to 85 %RH (no condensation)
Finish	Filter section: Polycarbonate, optical cut filter
Dimensions	84.5 (W) × 63.5 (H) × 32 (D) mm (3.33″ × 2.5″ × 1.26″)
Weight	100 g (0.22 lb) (unit only)
Accessory	Stand mounting bracket …1, Bracket mounting screw …2
