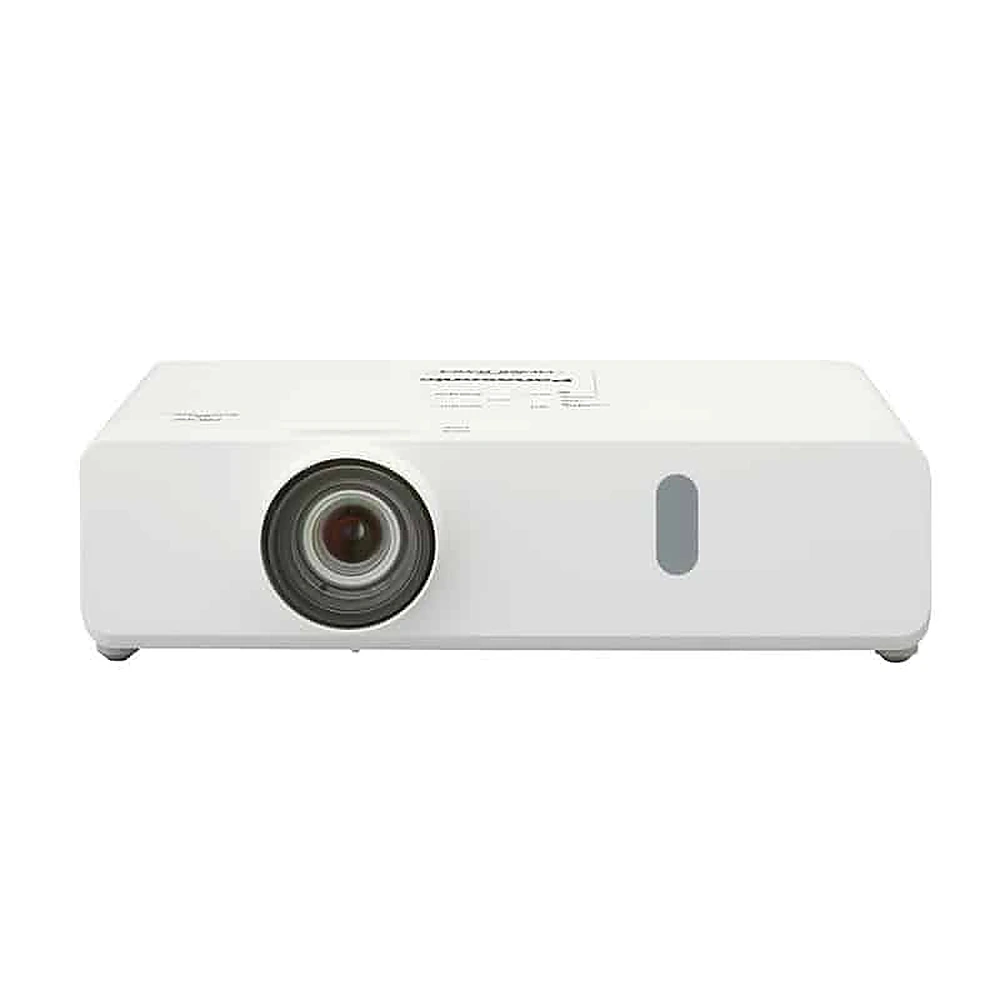

เครื่องฉายภาพโปรเจคเตอร์ Panasonic PT-VW360
Brand | Panasonic PT-VW360 |
Projector Technology | 3LCD |
Brightness | 4,000 |
Contrast Ratio | 20,000:1 |
Resolution | 1280×800(WXGA) |
Aspect Ratio | 16:10 |
Keystone Correction | Vertical +/- 40 Degree, Horizontal +/- 30 Degree |
Lamp Life(STD/ECO)(hr) | 5,000 / 7,000 Hrs (ECO) |
Lamp Price | 12,900 THB |
Weight | 3.3 kg |
Warranty | ตัวเครื่อง 2 ปี หลอดภาพ 1 ปีหรือ 1,000 ชม. |
จุดเด่น เป็นโปรเจคเตอร์แบบ 3LCD ความสว่างคมชัดสูง ถึง 4000 Ansi lumens และความละเอียดระดับ WXGA เหมาะสำหรับใช้งานร่วมกับจอโปรเจคเตอร์ขนาด 100 นิ้ว ถึง 180 นิ้ว สำหรับห้องเรียน ห้องประชุม ที่มีความกว้าง 8 เมตร x 8 เมตร สูง 4 เมตร
spec อย่างละเอียด Panasonic PT-VW360
- Brightness 4,000 lumens
- Resolution 1280 x 800 pixels
- (Input signals that exceed this resolution will be converted to 1280 x 800 pixels)
- Technology LCD
- LCD panel | Panel size (mm) 15.0 mm (16:10 aspect ratio)
- LCD panel | Panel size (inch) 0.59 inch (16:10 aspect ratio)
- LCD panel | Display method Transparent LCD panel (x 3, R/G/B)
- LCD panel | Pixels 1,024,000 (1280 x 800) pixels
- LENS Manual zoom (1.6x) (throw ratio: 1.18 – 1.90:1), manual focus, F 1.60 – 1.90, f 15.31 – 26.24 mm
- Screen size (diagonal) (mm) 0.76 – 7.62 m, 16:10 aspect ratio
- Screen size (diagonal) (inch) 30 – 300 inch, 16:10 aspect ratio
- Brightness*1 4,000 lm (input signals: PC, lamp power: NORMAL, picture mode:
- Dynamic, Iris: Off, Daylight View: Off, Auto Power Save: Off )
- Lamp 240 W x 1 lamp of Panasonic PT-VW360
- Lamp | Lamp replacement cycle NORMAL: 5,000 hours / ECO: 7,000 hours Panasonic PT-VW360
- Center-to-corner uniformity*1 85 %
- Contrast*1 20,000:1 (Full On/Off) (input signals: PC, lamp power: NORMAL,
- picture mode: Dynamic, Iris: On, Daylight View: Off, Auto Power Save: Off )
- Optical axis shift 49:1 (fixed)
- Keystone correction range Vertical: ±35° (±30° when using AUTO) (maximum value of WXGA input)
- Horizontal: ±35° (maximum value of WXGA input)
- Installation Ceiling/floor, front/rear
- Terminals | HDMI IN HDMI 19-pin x 2 (compatible with HDCP, Deep Color),
- audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
- Terminals | COMPUTER 1 IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
- Terminals | COMPUTER 2 IN / MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB),
- (input/output selectable using on-screen menu)
- Terminals | VIDEO IN Pin jack x 1 (Composite VIDEO)
- Terminals | AUDIO IN 1 M3 x 1 (L-R x 1)
- Terminals | AUDIO IN 2 M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
- Terminals | AUDIO IN 3 Pin jack x 2 (L, R x 1)
- Terminals | AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
- Terminals | LAN RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
- Terminals | SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
- Terminals | USB-Type A Memory Viewer / Wireless Module (DC 5 V, max 500 mA)
- Terminals | USB-Type B For USB Display Panasonic PT-VW360
- Power supply AC 100 – 240 V, 50 Hz/60 Hz
- Power consumption 100 – 240 V: 320 W (0.5 W when Standby mode set to ECO*2, 1.6 W
- when Standby mode set to Network, 9.5 W when Standby mode set to NORMAL)
- Built-in Speaker 4.0 cm (1 9/16 inch) round shape x 1, output power: 10.0 W (monaural)
- Operating noise*1 37 dB (lamp power: NORMAL), 29 dB (lamp power: ECO)
- Cabinet materials Molded plastic
- Dimensions (W x H x D) (mm) 352 x 98*3 x 279.4*4 mm
- Dimensions (W x H x D) (inch) 13 27/32 inch x 3 27/32 inch*3 x 11 inch*4
- Weight (kg) Approx. 3.3 kg
- Weight (lbs.) 7.3 lbs
- Operating environment (℃/M) Operating temperature: 0 – 40 °C
- (less than 1,400m above sea level, High Altitude Mode: OFF); 0 – 30 °C (1,400m to 2,000m,
High Altitude Mode: 1); 0 – 30 °C (2,000m to 2,400 m, High Altitude Mode: 2) - Operating environment (°F/Feet) Operating temperature: 32 – 104 °F (less than 4,593 ft above sea level, High Altitude Mode: OFF); 32 – 86 °F (4,593 ft to 6,562 ft,High Altitude Mode: 1); 32 – 86 °F (6,562 ft to 7,874 ft, High Altitude Mode: 2)
Operating humidity Operating humidity: 20 – 80 % (no condensation) - Note *1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*2 When the Standby mode is set to ECO, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for
external control using the serial terminal.
*3 With legs retracted to minimum.
*4 Including protruding parts.
*5 Average value. May differ depending on the actual unit. Panasonic PT-VW360
