TOA IR-510R

฿13,600.00

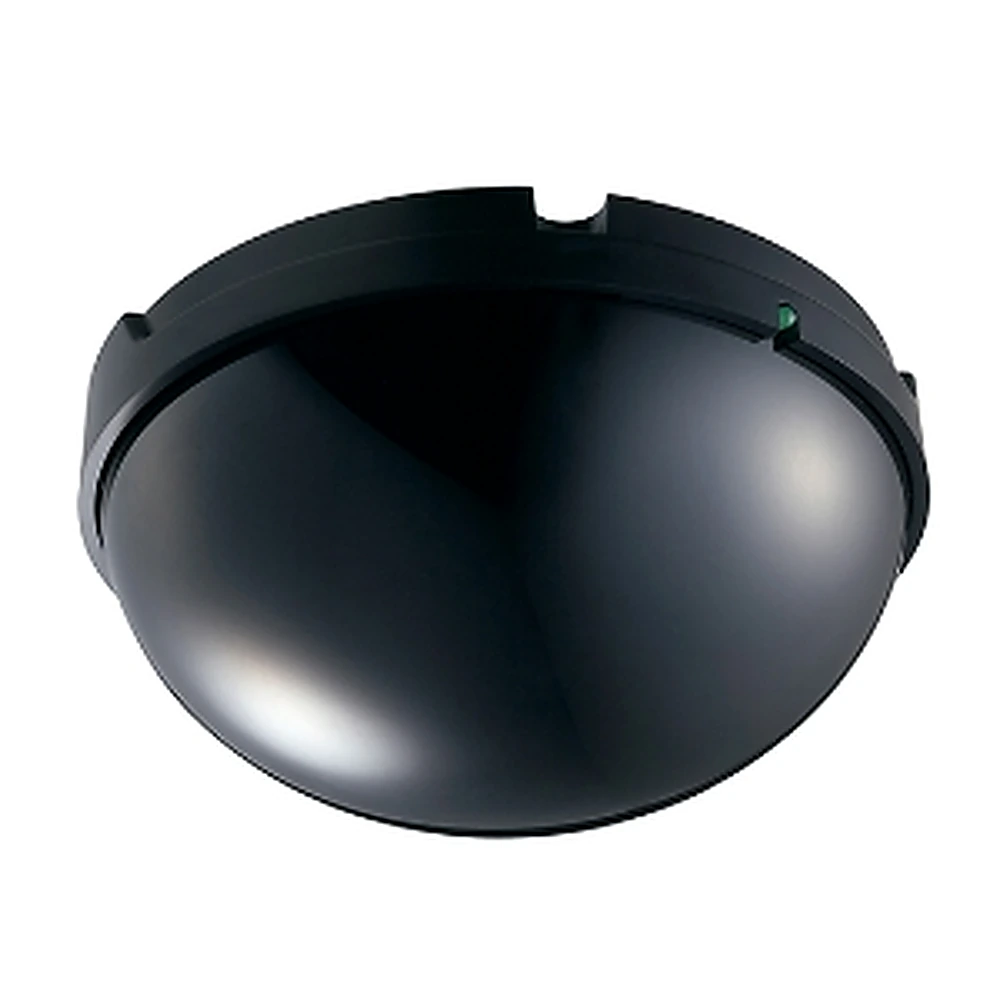

The IR-510R infrared wireless receiver is designed for exclusive use with the IR-702T infrared wireless tuner. It can be mounted on a ceiling.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Infrared Wireless Receiver (Ceiling) TOA IR-510R

TOA IR-510R

คุณลักษณะของ Infrared Wireless Receiver (Ceiling) TOA IR-510R

Power Source	24 V DC (supplied from the IR-702T)
Current Consumption	Max. 60 mA

Infrared Detector

Wavelength	870 nm
Carrier Frequency	Channel A: 3.100 MHz Channel B: 3.350 MHz
Communication Area	Approx. 7 m (22.97 ft) in radius from the point underneath the unit (Ceiling height: 2.5 – 3.0 m (8.2 – 9.84 ft), in a space without any obstacle)

Connection Terminal	75 Ω, BNC jack
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	30 % to 85 %RH (no condensation)
Finish	Filter section: Polycarbonate, optical cut filter Base: ABS resin, black
Dimensions	φ120 × 71.3 (H) mm (φ4.72″ × 2.81″)
Weight	205 g (0.45 lb) (unit only)
Accessory	Mounting bracket …1
